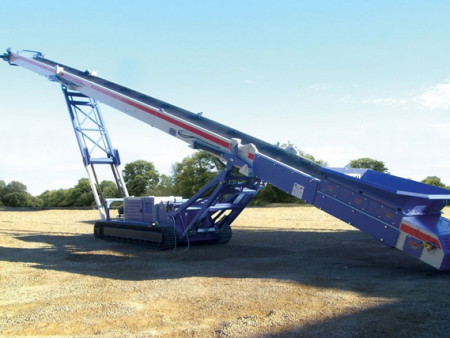

Track conveyors available in 12, 16, 18, 20, 24 & 30 meters with standard and loader feed bins, priced from $85,000 plus GST .

Crusher Screen Sales & Hire can provide a wide range of conveyor systems.

Radial Wheel Mounted Conveyors, Ship Loading Conveyors, Link Conveyors, and Grain Conveyors

Crusher Screen Sales & Hire Conveyors are made from Heavy Duty Construction Constructed from 5mm thick MS plate designed in 500mm deep section to give added stability and to withstand the rigours of heavy duty operation.

These conveyors are constructed in 3 sections , the tail section includes a generous feed hopper and the head section includes the conveyor drive, consisting of Sauer-Danfoss hydraulic motors and rubber lagged drive pulley. Diesel-Hydraulic Power Unit, Crusher Screen Sale s& Hire  conveyors can be powered by a Deutz or CAT Diesel Engine coupled to a tandem hydraulic pump giving sufficient oil flow to drive both the conveyor at maximum output and to operate the crawler tracks. The undercarriage consists of the hydraulically operated crawler tracks together with an adjustable support trestle arrangement, which allows variation in both feed and discharge heights. Emergency Stop System every track conveyor is equipped from the factory with an emergency stop system that will render the plant inoperable when activated, providing added safety for the operator. The folding mechanism of the conveyor head section allows for quick site set up and provides a flexible approach to transport of the unit. The hydraulic folding is designed so that the hydraulic cylinder piston rods are fully protected when the machine is operational.

NEW.....NEW.....NEW.....NEW.....NEW.....NEW.....NEW.....NEW.....NEW.....NEW.....NEW.....

Crusher Screen Sales & Hire now has crushers & screens based in Sydney ready and avaliable for both sale, hire and full contract work, serviceing all of the NSW region.  We also have some plant are based in, SA for both sale and hire of new and used equipment.
