ADDITIONAL FECON FORESTRY MULCHER ATTACHMENT AVAILABLE FOR HIRE - PACKAGE DEAL!

MORE MACHINE WHEN YOU NEED IT.

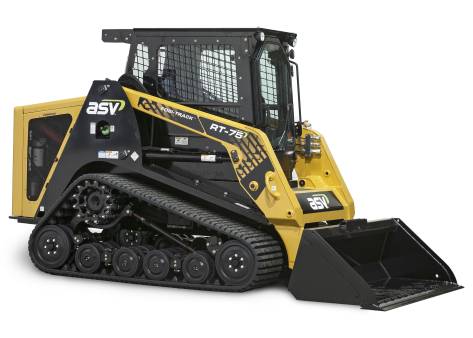

ASV’s RT-75 is revolutionizing the compact track loader industry with next-generation features, patented Posi-Track® technology, longer run time and less maintenance.

The RT-75 provides the industry’s highest ground clearance, lowest ground pressure, longest track life and best traction over all types of surfaces, from brush and mud to slush and ice.

POWER

The ASV RT-75 Posi-Track Loader features a Cummins 2.8-litre turbocharged diesel engine, producing 300Nm torque — 13 percent more than the machine’s 80-horsepower Terex predecessor. The torque is transferred to the ground through direct-drive hydraulic motors. And there’s also a Heavy-Duty version of the RT-75 that delivers maximum power, without compromise, during high intensity jobs.

PERFORMANCE

ASV built the RT-75’s auxiliary hydraulic system to be highly efficient, including 135 lpm high flow and 3,300 psi. Because the machine includes larger line sizes, hydraulic coolers and direct-drive pumps—rather than belt-driven pumps, preventing power loss—more flow and pressure is transferred directly to the attachment.

SERVICEABILITY

ASV designed the machine with serviceability in mind, giving operators easy access to the reliable Cummins engine through a three-panel hood and tilting cooler arrangement. The design, paired with sight gauges for both hydraulic oil and coolant, simplify routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required and the RT-75 can be paired with all standard attachments, such as backhoes, buckets, snow blades, brush cutters and pallet forks.

MACHINE SPECIFICATIONS

OPERATIONS

Loader Arms: Radial
Operating Weight: 4110 kg
Rated Op Capacity @ 35%: 1247 kg
Rated Op Capacity @ 50%: 1782 kg
Ground Pressure: 24.1 kPa / 3.5 psi
Engine Power: 55 kW / 74.0 hp
Tipping Load: 3564 kg
Max Travel Speed: 15 km/h

ENGINE

Features: Diesel 4-cylinder, Intercooled Turbo, Cummins QSF2.8, Hydraulically Driven Fan, Anti-Freeze Filled Radiator Cooling System, Dual Stage Intake Air Cleaner, Block Heater.
Engine Power: 55 kW / 74.0 hp
Displacement: 2.8 L
Torque Peak: 300 Nm

DRIVE TRAIN

Features: Dual Hydraulic Drive Motors, 2 Independent Torsion Axle Suspension.
Undercarriage Suspension: Two Independent Torsion Axles per Undercarriage, Bogey Wheel Suspension.
Roller Wheels: 48 High Density Polyurethane.
Front and Rear Wheels: 381 mm
Middle Wheels: 254 mm
Track Width: 457 mm
Length of Track on Ground: 1803 mm

DIMENSIONS

Full Length: 3759 mm
Arm Up Height: 3188 mm
Machine Height: 2210 mm
Machine Width: 1778 mm
Ground Clearance: 366 mm

AUXILIARY HYDRAULICS

Features: Pilot Hydraulic Joystick Control, Manual Quick Attach.
Max System Pressure: 22750 kPa
Auxiliary Pump Flow: 85.5 lpm (Low Flow) / 135 lpm (High Flow)

ELECTRICAL SYSTEM

Features: Upgradeable Wiring Harness, Attachment Control Kit.
Normal Charge: 12 V
Battery: 950 CCA
Alternator Charging System: 120 Amp
Port Outlet (Inside Cab): 1 – 12 V

OPERATOR STATION

Features: ROPS, Mechanical Suspension Seat w/ 2.
Loader Control: Right-hand pilot hydraulic joystick controls, loader lift/tilt, with variable control of auxiliary hydraulics.
Drive Control: Left-hand pilot hydraulic joystick controls, machine speed and direction.
Multifunction Display / Indicator: Fuel, Tachometer, Engine Temperature, Hour Meter, Battery, Trip Meter, Hydraulic Temperature, Water Temperature, Multiple Languages.
ROPS / FOPS: Meets ISO 3471: 2008, ISO 6683:2005, ISO 3449: 2005 Level 1, SAE J386: 2006-2.
Illumination: 2 Forward Facing Lights, 2 Rear Facing Lights.

SERVICE CAPACITY

Fuel Tank: 67.9 L
Hydraulic Tank: 30.3 L
Engine Coolant: 20.8 L
Engine Oil (inc Filter): 8.5 L

Note: ASV are formerly Terex Positrack Loaders: PT30, PT50, PT60, PT70, PT-80, PT100.
