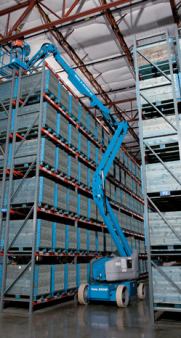

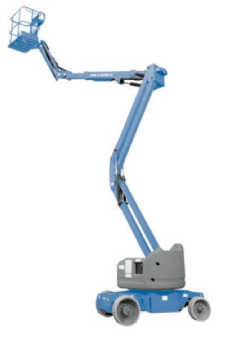

The Z-40 23N RJ Articulating Z-Boom is the first in the industry offering the efficient AC drive system. With it's narrow dimensions, smooth multifunction controls and trailblazing AC drive, this breakthrough design helps operators reach places they never thought possible.

Perfect for mechanical and electrical contractors, manufacturing, maintenance, factories, food processing, schools, hospitals and shopping centres.

• Chasis and Platform

 Solid rubber non-marking
 Self-leveling platform
 Hydraulic platform rotation
2wd
1.17m Steel Platform

• Easy Control and Service

Thumb rocker steer
 Drive enable
 Horn
 Hour meter
 Tilt alarm
 Alarm package
355° non-continuous turntable rotation
Zero tailswing and front arm swing
Sep-Ex drive system
Dual flashing beacons

• Power

48 V DC deep cycle battery pack
24 V DC auxiliary power
Universal 30A battery smart charger
Battery charge indicator
Low battery voltage interrupt

• Main Specifications

Working Height:  14.32 m
Platform Height:  12.32 m
Platform Capacity (Unrestricted):   227 kg
Platform Size:   1.17m x 0.76 m
Overall Width:   1.50 m
Stowed Height:   1.98 m
Stowed Length:  6.53 m
Weight:   6,940 kg
Ground Clearance - centre:   0.18 m
Horizontal Reach - maximum:   6.91 m
Up and Over Clearance - maximum:   6.48 m
